| 产品特性：Resistive | 是否进口：否 | 加工定制：是 |
| 类型：标准电阻箱 | 品牌：KX | 型号：AC415V-5500KVA-RL |
| 测量范围：1-5500Ω |

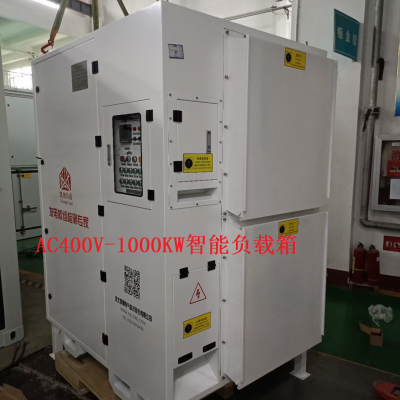

1000kW Resistive Load Bank for Generator Testing 智能假负载
5500KVA Resistive Inductive Load Bank offers a 0.80 power factor load and is designed for testing large generators, switchgear, transformers and UPS systems. The structural skid with fork lift pockets allows for portability and is ideal for shipyards, power plants, OEMs and data centers. It is perfect solution for regularly scheduled maintenance testing and commissioning of mission-critical standby emergency power systems where rated kVA, rated power factor and rated current testing is required.
Application
Large generator system testing in ocean engineering, drilling facilities,ship construction etc field
Factory testing for generator, static voltage characteristic test, speed characteristic test;
Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test
Assist shipyard in mooring test,sea trial test
Assist with the acceptance of the vessel generator test
Eliminate the carbon deposition of generator
As the generator loading system
Periodic running test for standby generator
UPS inspection and maintenance
Ship battery charging/discharging system testing
The acceptance of new system and testing of servicing equipment
Technical Parameters
5500kVA Resistive Inductive Load Bank for Generator Testing
Rating voltage/frequency | 400VAC 3 phase 4 wire, 50Hz, phase voltage 230VAC |
Max Load Power | Apparent Power: 5500kVA Resistive Load: 4400kW; Inductive Load: 3300kvar |
Load Resolution | Resistive Load: 30 steps, 1,2,2,5,10,10,20,50,100,21*200kW Inductive Load: 25 steps, 1,2,2,5,10,10,20,50,100,100,15*200kvar |
Power Factor | 0.8 |
Load Tolerance (each step) | ±5% |
Load Tolerance(overall) | ±3% |
Fan Control Power | 380VAC 3 phase 4 wire, 50Hz, phase voltage 220VAC |
Wire Connection | Load bank input--Copper bar (star coupling "Y") Control power input--Connector-bar |
Communication Interface | RS485,RS232 |
Insulation | F |
Max Protection Grade | IP55 |
Way of Working | Continuous Working |
Cooling | Forced air cooling, horizontal inlet air, vertical exhaust cooling |
Enclosure | Container type with a ladder, air inlet and outlet with mesh enclosure and protection door |
Transportation | Hoisting |
Color | RAL7035 |
Dimensions | About 6058mm*2350mm*2591mm(L×W×H) |
Weight | About 25000kg |
Operating Environment Parameter | |
Ambient Temperature | -10?C~+50?C |
Relative Humidity | ≤95% |
Atmospheric Pressure | 86~106kPa |
Brands of Main Components | |
Contactor | CHINT |
Fuse | DELIXI |
MCU | INFINEON |
Alloy Resistor | (self-developing) |
Data Processing Software | (self-developing) |
Structure Chart
Application Case
Workshop
Contact Information
Mr Dai mobile phone：86-18031162660 ；e-mail ：dxb@kxload.com
Hebei Kaixiang Electrical Technology Co., Ltd
No 79 Wangshan Road, Shijiazhuang City,
Hebei Province, China
