Product Description
Product introduction

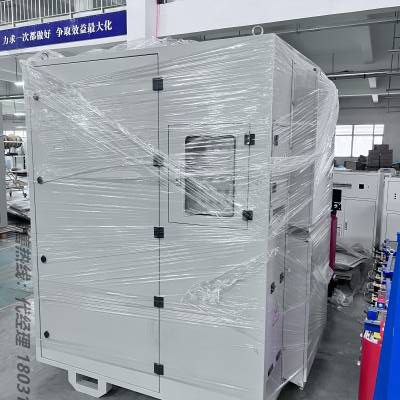

Load Bank for sale AC220/440- 800kw resistive Load Bank for generator testing
Main functions:
1. Users can set adjustable load power within rated power.
2. Current, voltage, frequency, power factor, and active power, reactive power, and apparent power can be displayed.
3. With software programmable control, graphs of current, voltage, frequency, power factor, power can be displayed, saved and printed.
Control mode: manual control (control panel) with remote control or PC intelligent control.
Display meters: multi-function digital meter or generator tester.
Protection: Over load protection, over heat protection, short circuit protection, Emergency stop switch, etc
Cooling: Force air cooling.
Specification
| AC220/440-800kW | |
| Rating Voltage/Frequency | 220V AC 3 phase 3wire 60HZ 440V AC 3 phase 3wire 60HZ |
| Rated Load Power | 220V AC Resistive load:800kW, 440V AC Resistive load:800kW |
| Installed Capacity | Resistive load: 800kW |
| Load Step | Resistive load: 12 steps 1,2,2,5,10,10,20,50,100,200,200,200kW Select the input voltage by switching the knob. When the input voltage is lower than the rated voltage, the power of the load will change according to Ohm&锛�39;s law. |
| PF(Power Factor) | 1 |
| Load Tolerance (each step) | 卤5% |
| Load Tolerance(overall) | 卤3% |
| Display Precision | 0.5 class |
| Fan & Control Power | External AC220V 3phase4wire /60Hz, |
| Wire Connection | Load power supply input--Copper bar Control power supply input--Connector-bar |
| Insulation | F |
| Duty Cycle | Continuous |
| Cooling Type | Force air cooling, horizontal air inlet and vertical air outlet |
| Transportation | Hoisting, there are lifting lug on top and a forklift hole with casters at the bottom |
| Dimension | About 2660mm*1600mm*2100mm(L脳W脳H) |
| Weight | About 1200kgs |
| Casing Color | Grey(RAL7035)or as required |
| Operating Environment Parameter | |
| Workplace | Indoor or outdoor |
| Ambient Temperature | -20潞C~+50潞C |
| Relative Humidity | 鈮�95% |
| Altitude | 鈮�2500 meter |
| Atmospheric Pressure | 86~106kPa |
